Corrugated Roll Forming Machine
1. Specification of the material
| 1 | Suitable Material | PI/ PPGI |
| 2 | Width of the raw material | 1220mm |
| 3 | Thickness | 0.3-0.6mm |
2. Machine Detailed Parameters
| 1 | Roll Forming Machine | YX18-75-1050 |
| 2 | Machine structure | Wall board structure |
| 3 | Total power | Motor power-5.5kw Hydraulic power-4kw |
| 4 | Roller stations | About 18 stations |
| 5 | Productivity | 0-15m/min |
| 6 | Drive system | By chain |
| 7 | Diameter of shaft | ￠70mm solid shaft |
| 8 | Voltage | 380V 50Hz 3phases (Customized) |
| 9 | Color Of The Machine | Bule and yellow |
| 10 | Deliver time | 70 days |
| 11 | Terms Of Payment | 30%T/T 70% pay before shipment |

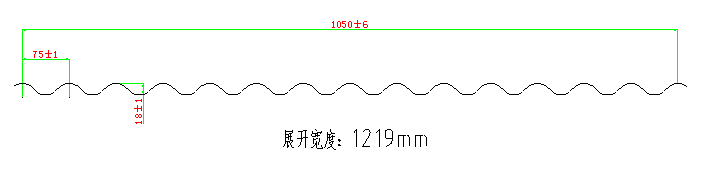

3. Profile drawing

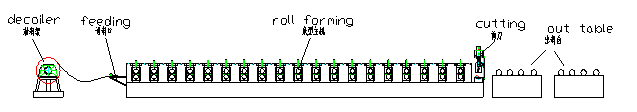

4. The Chart of Process Flow
Manual Decoiler—Roll Forming—Cutting—Out table
5. Specification of Components
(1) Un-coiler
Option1: 5T Manual de-coiler
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 500-590mm
- Maximal out diameter: 1500mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
Option1: 5T Hydraulic de-coiler
- Width of feeding: 1250mm
- Capability: 5 Ton
- Inter diameter: 470-520mm
- Maximal out diameter: 1500mm
- Coil placement in the coil holder: hydraulic hoist
- Working speed: 0--20m/min adjustable
- Main motor power: 5.5KW AC motor
- Hydraulic power: 4kw
(2) Main Roll Forming Machine
- Roller material:ASTM1045 chrome plated surface with chrome
- Shaft diameter: ￠70mm material: SAE1045 with quenching and tempering
(3) Machine Structure
- Main frame by 350H beam welding
- Machine structure: wall board
(4) Hydraulic cutting system
- Cutting after forming: Cut the sheet after roll forming to required length
- Material of blade:Cr12, 58-62 HRC hardness
- Cutting power by hydraulic,4KW
- Working pressure: 12Mpa adjustable
- Length measuring: Automatic encoder length measuring
- Tolerance of length: +/- 1.5mm for each piece end product
(5) Hydraulic station
- Hydraulic power: 4kw
- Working pressure: 12Mpa adjustable
- Solenoid valve: 1 group
- Hydraulic oil: 46# hydraulic oil
(6) Computer Control Cabinet
- Programmable setting of profile length and quantity
- Operating system language: English and Chinese
- Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
- PLC: Panasonic or customerization
6. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
