High Speed Angle Roll Forming Machine With Notching And Convey

  • 1
  • 2

Brand Name : Saibo

Model Number : 3mm Angle

Certification : CE/ISO

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 300 sets per year

Delivery Time : 90 days

Packaging Details : Suitable for ocean shipment

Product Name : Angle profile roll forming machine

Shaft diameter : 65mm

Steel thickness : 3.0mm

Decoiler : Hydraulic or manual

Station : 7 stations+ on station of rectify

Roller material : Gcr15

Cutting and notching system : before roll forming

Speed : 20-30/min

convey : bwteen the notching and roll forming

convey length : 4 meters

Contact Now

High Speed Angle Roll Forming Machine with notching and convey

main speficication:

High Speed Angle Roll Forming Machine With Notching And Convey

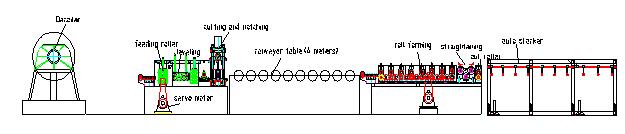

1. The Chart of Process Flow

manual decoiler— Feeding—nottching and cutting—convey— roll formingrectifystacker

High Speed Angle Roll Forming Machine With Notching And Convey

Specification

No Technical Specification & Remark
1

3T manual decoiler

  • Steel coil width: 300mm;
  • Internal diameter of coil: variable, from 380 mm to 480mm
  • Maximum coil weight: 3000Kg;
  • extension and decoiling by manual
2 Combined pre-cutting and notching
  • The notching and cutting will take place at the same time.
  • Hydraulic power: 5.5kw
  • Hydraulic working pressure: 20Mpa
  • Material of blade:Cr12 with heat treatment 58-60°
  • Length measuring: Automatic encoder length measuring
3 Conveyor
  • The conveyor length: 4 meters
  • Conveyor function: keep enough material for the roll forming machine to get the high speed.
4

Main Roll Forming Machine

  • Profile steel thickness 3mm
  • Main motor power: 11kw
  • Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
  • Roll station: about 7 stations +1 station of straightening
  • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
  • Shaft diameter: ¢65mm material: SAE1045
  • Machine roll forming speed:20-30m/min
  • Machine base frame adopt H beam welding steel
  • Structure: wallboard structure
  • Transmission: by gear box

5

auto stacker

  • Automatic out table.
  • Length: 3m
  • With air cylinder to carry the products from the machine. Then left them down.
  • There is transmission table to move the products out.

6

Hydraulic System

  • Hydraulic power: 5.5kw
  • Working pressure: 20Mpa adjustable
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil
7

Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • Length inaccuracy can be amended easily.
  • PLC brand: Panasonic
  • Touch screen: MCGS

4. Warranty

  • Warranty: 1 year warranty from date of shipment
  • Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

5. FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
